Precision CNC Machining Factory

CNC Precision machining is the process of cutting metal parts to make them fit the end user’s applications and functions. Much of modern machining process are carried out by computer numerical control, CNC, in which computers are used to control the movement and operation of the mills, lathes, and other cutting machines. RMC specializes in manufacturing OEM custom CNC machining parts with machining center, CNC machines and other special tools.


For some of the applications, just castings or forgings without machining could reach the desired tolerances and surface requirements. However, for most situation, the CNC machining are needed to match the customer's unique specifications and to make sure that the finished metal parts could work properly with other parts. Even for the investment castings, which have much better surface and tolerance grade than other metal forming process, still need additional processing.


To ensure the high quality and precision of the finished CNC machining parts, the computer programs is critical. The Computer Aided Design, which is called CAD for short, and Computer Aided Manufacturing, called CAM, are both used as programs to provide detailed instructions about each step of the precision machining process. Programs like SolidWorks, ProE and UG create extremely detailed 3D models.


▶ Available Ferrous Metal Materials for CNC Machining
  • Cast Iron including gray iron, ductile iron, malleable cast iron
  • Stainless Steel, Duplex Stainless Steel, Precipitation Hardening Stainless Steel
  • Carbon Steel from low carbon steel, medium carbon steel and high carbon steel.
  • Alloy Steel from standard grades to special grades on request.
  • Nickel Base Alloy, Cobalt Base Alloy.


▶ Available Non-Ferrous Metal Materials for CNC Machining
  • Aluminum and their alloys
  • Brass, Bronze and other Copper Base Alloys
  • Zinc and their alloys
  • Stainless Steel
  • Nickel Base Alloy, Cobalt Base Alloy.

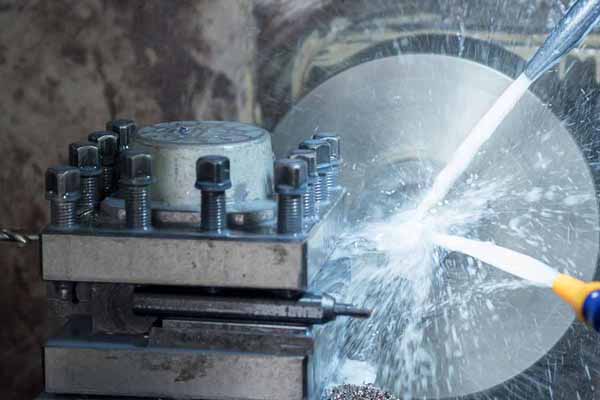

CNC Precision Machining

CNC Machining Service




CNC Machining Factory

CNC Machining Factory


CNC Machining Capabilities at RMC

At RMC, we offer machining, grinding, turning, drilling, threading and other secondary processing services utilizing CNC equipment and machining center to ensure that our precision machined castings match the tight tolerances.


Our Fully equipped machine workshops are organized to develop parts of exceptional dimensional accuracy. Our precision machining workshop are equipped with Machining Centers, CNC Machines, and Special Machined for some appointed process. Our dedication to the precision machining process is extensive. We pride ourselves on our products and services, reasonable costs, and timely delivery. The quality certifications are implementing strictly according to ISO 9001.


Precision machining can be used on many materials including gray iron, ductile iron, carbon steel, steel alloys, stainless steel, aluminum, copper, bronze, and some special alloys.


▶ Equipment for Precision CNC Machining
  • Convertional Machines:  20 sets.
  • CNC Machines: 60 sets.
  • 3-Axis Machining Centers: 10 sets.
  • 4-Axis Machining Centers: 5 sets.
  • 5-Axis Machining Centers: 2 sets

▶ Precision CNC Machining Capabilities

  • Max Size: 1,500 mm × 800 mm × 500 mm
  • Weight Range: 0.1 kg - 500 kg
  • Annual Capacity: 10,000 tons
  • Accuracy: As per standards or on request. Minimum ±0.003 mm. or according to ISO 2768
  • Holes to ±0.002 mm dia.
  • Flatness, Roundness and Straightness: As per standards or on request.





CNC Machining Parts

CNC Machining Parts





CNC Machining Process

CNC Machining Process

Precision Machining Processes

The Machining processes are Turing, Facing, Boring, Milling, Drilling, Planning, Shaping, Grooving, Face Grinding, Cylindrical Grinding, Honing, Gear Hobbing, Threading, Lapping, Tapping.

• Honing

This process uses honing hole diameters ranging from 0.8mm to 100 mm and has depth up to 280 mm. The linear tolerance is 0.001 mm, roundness of 0.0005mm, and straightness of 0.0005 mm. The surface finish is Ra0.05μm. Horizontal and vertical honing machines are used and include single-spindle, twin-spindle, and six-spindle.

• Turning

This is the process of single point cutting of hardened pieces. Our hard turning process can machine parts with hardness over 58 HRC after heat treatment, maximum turning diameter of 26 mm, turning length up to 100 mm, dimensional tolerance of 0.005 mm, and roughness Ra0.2μm.

• Deburring

RMC's deburring capabilities include electrochemical machining, thermal energy method, and abrasive flow machining. These are used for hydraulic, automotive, and aerospace components with crossing holes and complex inner cavity to meet strict deburring requirements.

• I.D. and O.D. Grinding

This process enables us to machine shafts with diameter with 750 mm, length within 1000 mm, roundness of 0.0004 mm, and cylindricity of 0.001 mm. The inner holes range from 3 mm to 100 mm.

• O.D. Centerless Grinding

This is used for shafts with diameter with 200 mm, length with 400 mm, diameter tolerance of 0.001 mm, cylindricity of up to 0.0005 mm. It is available for both through-feed and infeed.




Horizontal Machining Center

Horizontal Machining Center


CNC Machine

CNC Machine




Precision Machining Gallery


CNC Precision Machining

CNC Precision Machining


Precision Machining

Precision Machining


CNC Machining Center

Machining Workshop


CNC machining service

CNC Machine


Vertical Machining Center

Vertical Machining Center


Horizontal Machining Center

Horizontal Machining Center


precision machining service

Horizontal Machining Center


china cnc machining service

Horizontal Machining Center


Precision Machining

Precision Machining


High Precision Machining

High Precision Machining


Machining Workshop

Machining Workshop


Machining Workshop

Machining Workshop


Precision Machining

Machining Workshop


China CNC Machining Manufacturer

CNC Machining Factory


china machining factory

Machining Workshop


china cnc precision machining company

Machining Workshop


CNC Machining Components Applications

  • Rail Trains
  • Heavy Duty Trucks
  • Automotive
  • Construction Equipment
  • Logistics Equipment
  • Agricultural Equipment
  • Hydraulics
  • Engine Systems





Industrial Casting Parts

Precision CNC Machining Value Added Services:


As a one stop solution provider and complete supplier for castings, forgings and machining, we also offer services of heat treatment, surface treatment with reliability and flexibility. Our engineers keep their eyes on the production process from pattern design to the finished products, as well as the feedback from the customers. The customers rely on us for concurrent design and engineering support, materials and manufacturing support concerning properties and specifications. We have in-house rapid prototyping capabilities and in-house material testing, NDT, welding, and heat treatment.


Therefore, the things we can do are comprehensive and one stop:

  • Engineering Services: Pattern Design, Cost Down Proposals, Tooling and Pattern Production, Samples, Mass Production, Logistics, After Service.
  • Casting and Forming: Investment Casting, Sand Casting, Gravity Die Casting, High Pressure Die Casting, Shell Molding Casting, Forging, Precision CNC Machining and Metal Fabrications.
  • Heat treatment: Quenching, Tempering, Normalizing, Annealing, Carburization, Nitrotion
  • Surface treatment: Anodizing, Zinc-plating, Polising, GeoMet, Zintek....etc
  • Testing Service: Chemical Composition, Mechanical Properties, Fluorescent or Magnetic Penetration Inspections (FPI, MPI), X-rays, Ultrasonic Testing


To learn more about how we can assist with your casting and machining needs or discuss options, just feel free to reach out to our engineering team today.
